本公司銷售的德律設備均為二手設備，成色好，性能穩定。服務工程人員均在原廠有5年以上工作經驗，出貨前，我們會整體檢測，demo1-2個工作日再發貨。
出租設備，服務保養，升級保固，均為我司工程人員處理；
出售設備整機保固3個月，部分重要部件保固1年，若出保，我司配件備貨充足，可提供緊急維修。
買機/租機熱線：13776054406（手機/微信號）賈先生
特性：
? 業界較高的檢測速度，可達57 cm2 / sec
? 多重3D檢測技術
? 完善的GR＆R數值提供高精準檢測
規格：
| Optical System | |
| Imaging Method | Stop-and-Go |
| Top Camera | 12 MP/21 MP High Speed Camera |
| Angle Camera | N/A |
| Imaging Resolution |
5.5 μm *, 9.8 μm, 10 μm, 12 μm, 15 μm (factory setting) * Available for TR7700Q SII & TR7700Q SII DL |
| Lighting | Multi-phase True Color LED |
| 3D Technology | Quad Digital Fringe Projectors |
| Max. 3D Range |
@ 5.5 μm: 20 mm @ 9.8 μm: 20 mm @ 10 μm: 40 mm @ 12 μm: 40 mm @ 15 μm: 40 mm |
| Inspection Performance | |
| Imaging Speed |
@ 5.5 μm: 7.8 cm2/sec @ 9.8 μm: 40 cm2/sec @ 10 μm: 25 cm2/sec @ 12 μm: 37 cm2/sec @ 15 μm: 57 cm2/sec |

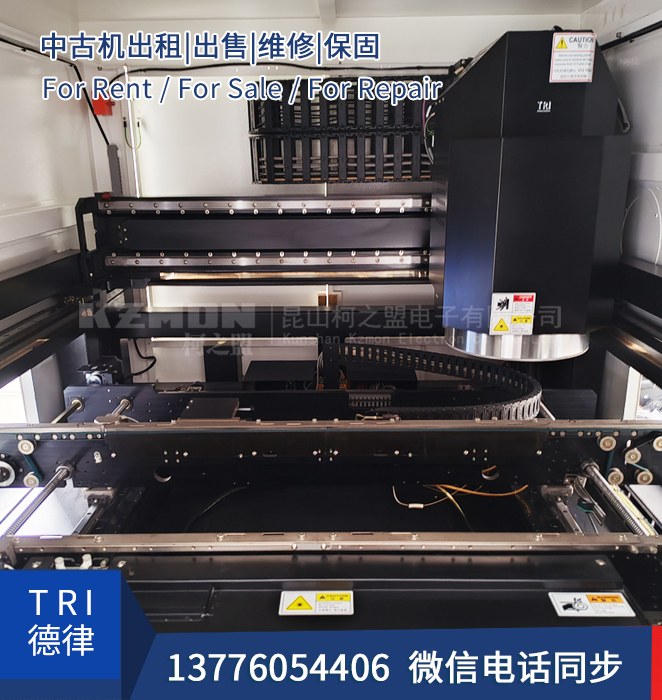

| Motion Table & Control | |

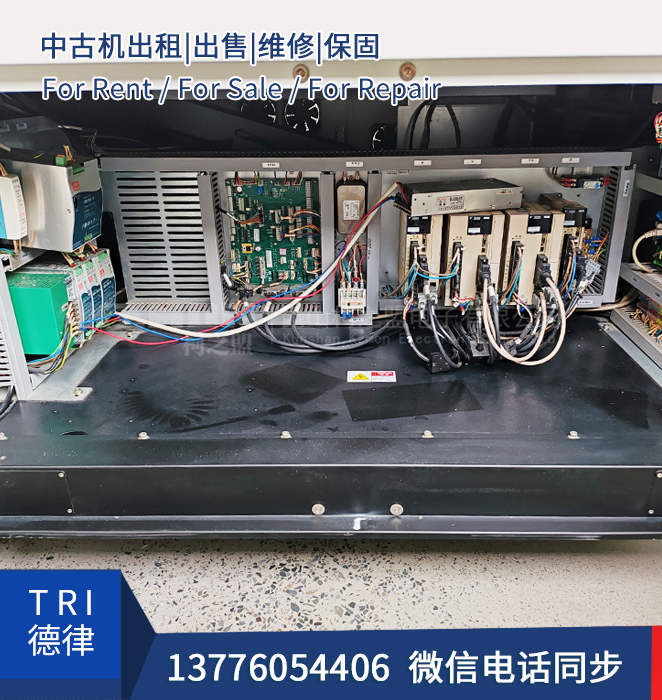

| X-Axis Control | Ballscrew + AC Servo with Motion Controller |
| Y-Axis Control | Ballscrew + AC Servo with Motion Controller |
| Z-Axis Control | Ballscrew + AC Servo with Motion Controller |
| X-Y Axis Resolution | 1 μm |
| Board Handling | |
| Max PCB Size |
TR7700Q SII: 510 x 460 mm TR7700LQ SII: 765 x 610 mm TR7700Q SII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane |
| PCB Thickness | 0.6-5 mm |
| Max PCB Weight |
TR7700Q SII: 3 kg. Optional: 5kg TR7700LQ SII: 3 kg (6.61 lb). Optional: 5 kg (11.02 lb) / 12 kg (26.46 lb) TR7700Q SII DL: 3 kg. Optional: 5kg |
| Top Clearance |
@ 5.5 μm: 20 mm @ 9.8 μm: 50 mm @ 10 μm: 50 mm @ 12 μm: 50 mm @ 15 μm: 50 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm. Optional: 4 mm / 5 mm |
| Conveyor |
Inline Height: 880 – 920 mm * Optional: 940-965 mm (SMEMA compatible) |
| Inspection Functions | |
| Component | Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component |
| Solder | Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination |
| Dimensions | |
| WxDxH |
TR7700Q SII: 1100 x 1720 x 1710 mm TR7700LQ SII: 1365 x 1720 x 1710 mm TR7700Q SII DL: 1100 x 1820 x 1710 mm Note: not including signal tower, signal tower height 515 mm |
| Weight |
TR7700Q SII: 910 kg TR7700LQ SII: 1025 kg TR7700Q SII DL: 960 kg |
