新型號德律離線AOI TR7700L SIII DT出貨，此款設備可以和TR7710和TR7700SII PLUS 共用程式。

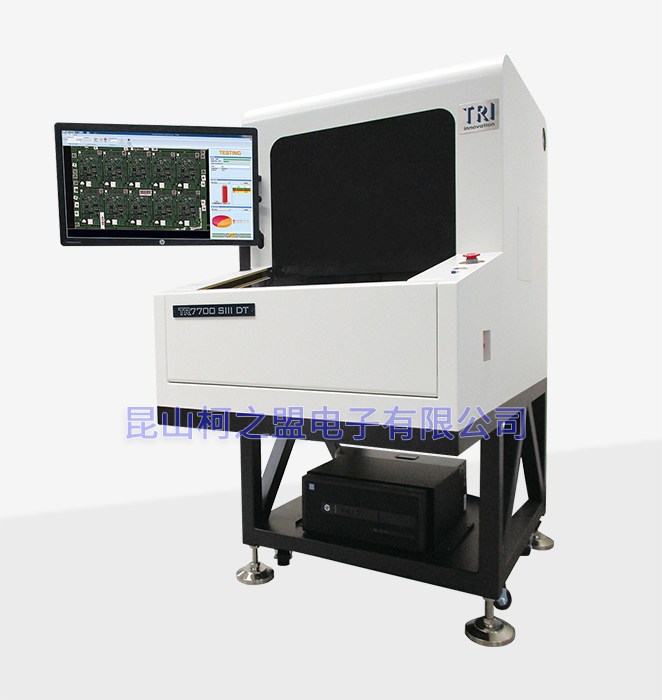

TR7700 SIII DT是一臺高性能的離線型AOI解決方案，擁有最高精度和易用性等優點。使用TRI獨有的多相位光源和新一代的檢測軟件，TR7700 SIII DT具備快速和簡易編程等優良的缺陷檢測功能，非常適合變化度高生產線。

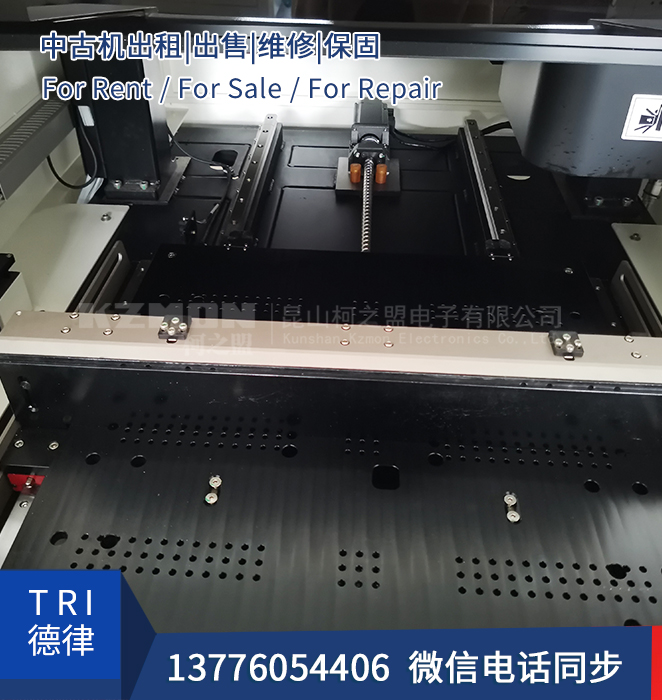

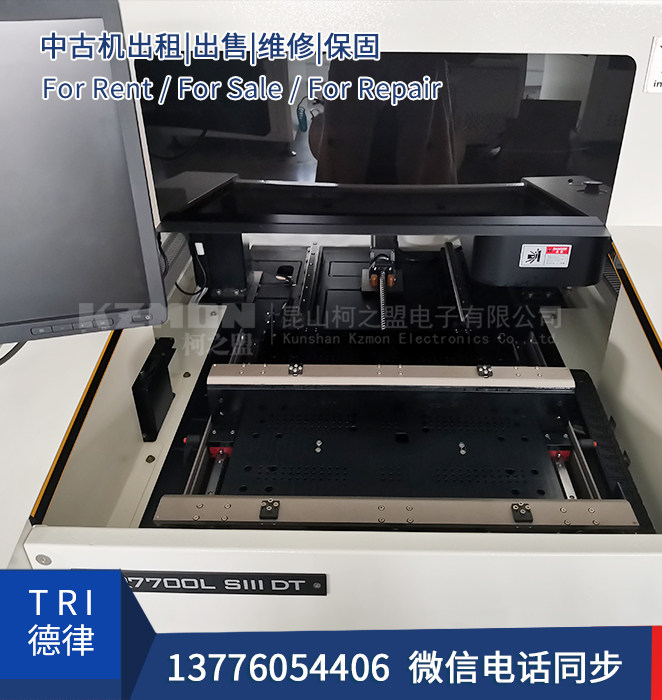

倉庫此款離線AOI還有四臺，成色新，性能優！
有需要可以聯系13776054406 賈先生，電話微信同步。
產品規格：
Optical System
Imaging Method
Dynamic Imaging
Top Camera
4 Mpix
Angle Camera
N/A
Imaging Resolution
10 μm, 15 μm (factory setting)
Lighting
Multi-phase RGB+W LED
3D Technology
N/A
Max. 3D Range
N/A
Inspection Performance
Imaging Speed
4 Mpix@ 10 μm: 60 cm2/sec
4 Mpix@ 12.5 μm: 120 cm2/sec
Motion Table & Control
X-Axis Control
Ballscrew + AC-servo controller
Y-Axis Control
Ballscrew + AC-servo controller
Z-Axis Control
N/A
X-Y Axis Resolution
1 μm
Board Handling
Max PCB Size
TR7700 SIII DT: 330 x 250 mm
TR7700L SIII DT: 510 x 460 mm
PCB Thickness
3 mm
Max PCB Weight
3 kg
Top Clearance
25 mm [48 mm optional]
Bottom Clearance
TR7700 SIII DT: 100 mm
TR7700L SIII DT: 50 mm
Edge Clearance
3 mm
Conveyor
Manual
Inspection Functions
Component
Missing
Tombstoning
Billboarding
Polarity
Rotation
Shift
Wrong Marking (OCV)
Defective
Upside Down
Extra Component
Foreign Material
Solder
Excess Solder
Insufficient Solder
Bridging
Through-hole Pins
Lifted Lead
Golden Finger
Scratch/Contamination
Dimensions
WxDxH
TR7700 SIII DT: 860 x 1100 x 1350 mm
TR7700L SIII DT: 980 x 1345 x 1490 mm
Weight
TR7700 SIII DT: 340 kg
TR7700L SIII DT: 385 kg
